HD207 HD Monitoring System HD207
< >

Description

In EMC labs, few HD videos can be provided to customer for evaluation. More and more families start to use HD TV in their saloons, but in EMC labs, low quality video monitors are using. It is time to change.

HD207 HD monitoring system is the one of best choices for EMC labs in the world. It can provide HD video output, the resolution is up to 1920*1080p@30fps. Based on this exciting function, any detail of the device under test can be displayed. The display result has never been so clear.

Except HD output, HD207 provides the On Screen Display (OSD) function. The test data captured from test software can showed on the video synchronously. This function will relieve tester’s eye fatigue.

Abundant options bring more flexible choices. EMC labs can easily find the balance point based on limited budget.

Its OSD function looks so amazing. CHANGEN abandons the possibility to get the support from test software vendor. Based on its engineer’s exquisite programming skill, the displayed test data is captured from the test software directly. The data has no any additional treatment and keeps its original flavor. This perfect designation brings nothing to the reliability of the test data.

Based on their actual needs, the users can choose the favorite test data to display. The showed data can looks professional or compact.

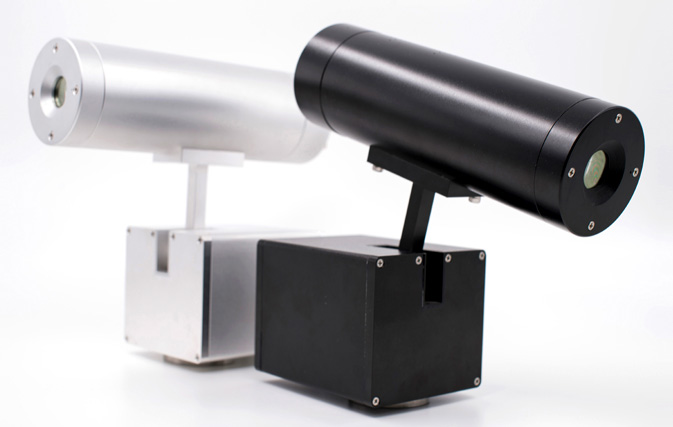

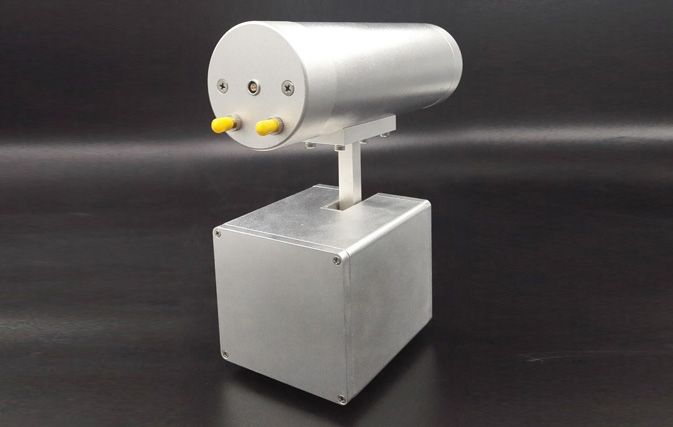

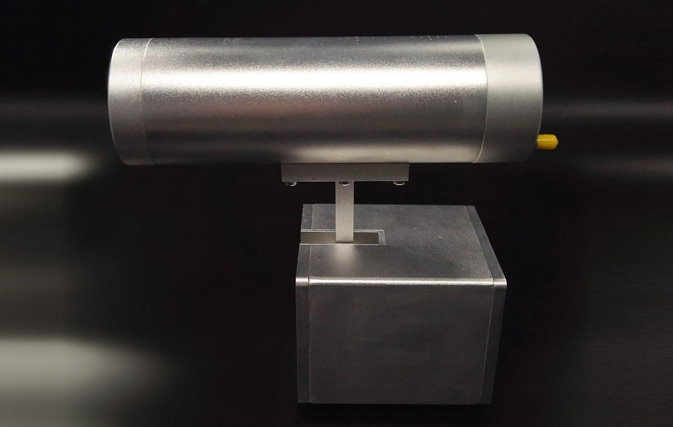

HD207’s pan-tilt system is designed from a simple line. Discarding known design element from similar products, CHANGEN uses a new method to realize the pan-tilt function, this distinctive designation make the looking of HD207 camera so slim and compact. Only fiber optic and power supply port is fixed on the end cap of the camera.

Function

High Definition Video – clear and unreserved:
HD207 HD monitoring system has been designed for monitoring during performing EMC tests. It provides excellent EMC performance. It is difficult to find its existence in background noise and its outstanding construction and circuit designation immunizes it from extreme RF field strength.
△ Excellent EMC performance
△ Professional camera functions
△ Abundant configurations

Specification

Sensor SONY 1/2.8” Progressive Scan CMOS
Day/Night Mode Applied
Low Light Sensitivity Applied
Minimum Illumination Color:0.1 lux@F1.8
B/W:0.05 lux@F1.8
IR Sensitivity Range 700-1100nm
Electronic Shutter Manual:1/5-1/2000 sec
Auto:1/5-1/10000 sec
Focal Length Zoom,f4.9-49mm
Aperture F1.8-3.0
Zoom 10x optical
Focus Auto/Manual
Horizontal Viewing Angle 57.8°(1x)-6.9°(10x)
Compression H.264 High Profile
Max. Frame Rate @ Resolution 30fps@1920*1080 / 30fps@1280*720 / 30fps@640*480
Wide Dynamic Range 75dB
Built-in Microphone 8kHz, Mono, 16 bit encoding
Fiber Optic ST接头,62.5/125μm
Enclosure Aluminum
Camera Size 230mm(L)* Φ80mm, 1.5kg
Pan-Tilt System Size 130mm(L)*107mm(W)*110mm(H), 1.8kg
EMS Performance Defeat CW: 300V/m, Radar PM: 600V/m @ DC-18GHz
EMI Performance Lower than CISPR 25 Class5 -6dB

Basic Config

Basic Configuration:

Camera HD207C, 3/8” inches thread( when HD207PT is not ordered)
Power Supply HD207SP, AC 100-240V, 50Hz with AC Power Cord
Power Supply Wire (Connect HD207C with HD207SP) HD207SPW5, 5 meters
Fiber Optic 20 meters, ST, 62.5/125μm
Controller √ Intel i3 3.0G Processor or higher
√ 16G SSD
√ 4G Memory or higher
√ Built-in HD207EO
√ Genuine Microsoft Windows Embedded 7
√ Genuine camera control system
(Including one camera license)
√ 19 inches 2U case
√ One Set Keyboard/Mouse
√ AC 100-240V, 50Hz

√ AC Power Cord

Option Config

Optional Configuration:

Pan-tilt System HD207PT, 3/8” inches thread
OSD function (On Screen Display) HD207OSD, Genuine CHANGEN Datalinker software Support R&S® EMC32
(R&S is the trademark of Rohde & Schwarz. EMC32 is the product of Rohde & Schwarz.
The test software from TOYO and Nexio will be supported in near future)
Extended Storage Slot HD207EM, one slot for hard disk, 1TB SATA3 included.
Tripod HD207M1, Variable Height: 0.8m-1.2m
HD207M2, Fixed Height: 0.9m
HD207Mx, Customized Height
Extended Battery Pack HD207BAT, Built-in Li-ion Battery
HD TV Depending on the customer’s requirement
Power Supply Wire (Connect HD207C with HD207SP) HD207SPW8, 8 meters
HD207SPW10, 10 meters
HD207SPWx, Customized Length
Extended Warranty HD207EXT1, Extended one more year warranty
HD207EXT2, Extended two more year warranty
HD207EXT3, Extended three more year warranty


Recommended Configuration (RC):
RC1: Basic configuration + HD207PT + HD207M2 + HD TV + HD207EXT1
RC2: Basic configuration + HD207PT + HD207SPW8 + HD207OSD + HD207M1 + HD TV + HD207EXT2
RC3: Basic configuration + HD207PT + HD207SPW10 + HD207OSD + HD207M1 + HD207BAT + HD TV + HD207EXT3
