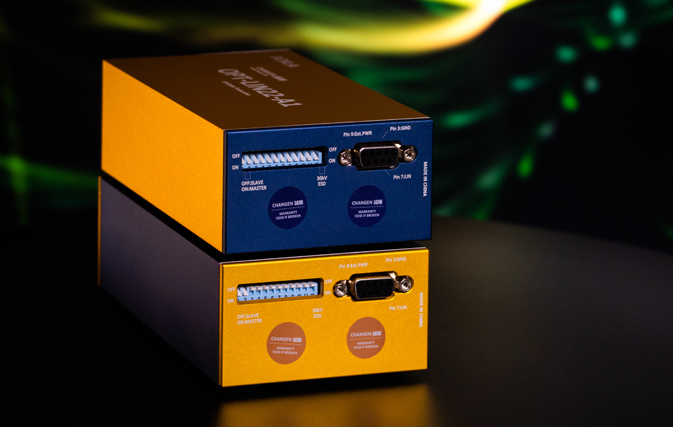

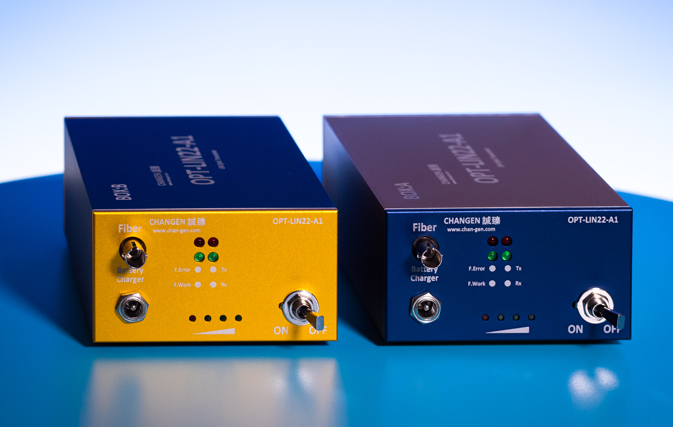

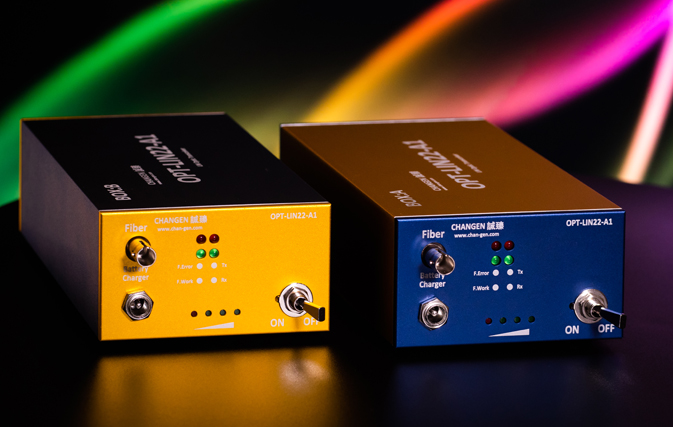

LIN Optic Transceiver OPT-LIN22-A1
< >

Description

LIN Optic Transceiver OPT-LIN22-A1

Function

Newest LIN BUS optic transceiver!
Built-in and switchable ESD protector can resist up to 30kV!
Radiation susceptibility up to CW 300V/m!
Radiation susceptibility up to radar wave 600V/m!
Support external power supply!
Intuitive battery power indicator!
K-line compatible!

Super EMI performance!

6dB below CISPR 25 Class 5 limit!

Specification

Max speed 20kbps (fully LIN 1.0, LIN 1.1, LIN 1.2, LIN 1.3, LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A and SAE J2602 compliant)
Fiber Single Core, ST, multi mode 62.5/125μm
BUS connector D-Sub 9 Female (Pin3 to GND / Pin7 to LIN)
Mode Selection Selectable toggle switch between Master / Slave
ESD Protector Selectable toggle switch between 30kV / no protection
Built-in battery Li-ion battery
Continuous work time >24 hours(From fully charging)
Battery capacity indicator 4 levels indicator
Temperature -40°C to 90°C
Warranty Optic transceiver: 36 months
Accessories: 12 months (Accessories mean optic fiber, convertor, charger, instrument container)
Dimensions 128mm(L) × 80 mm(W) × 44 mm(H)
Origin P.R. China
